10kW Three-Phase High-Voltage Solar Storage System | YR-SYS620-3P10-19.2
A three-phase high-voltage solar storage package combining a 10kW hybrid inverter, 192V LFP battery and 620W PV modules for residential, farm and small commercial project evaluation.
Product model: YR-SYS620-3P10-19.2 · 19.2kWh · 10kW hybrid inverter
Product overview
19.2kWh solar storage with a documented inverter platform
A three-phase high-voltage solar storage package combining a 10kW hybrid inverter, 192V LFP battery and 620W PV modules for residential, farm and small commercial project evaluation. CVC Energy supports distributor, installer and OEM/ODM buyers with product matching and export coordination.

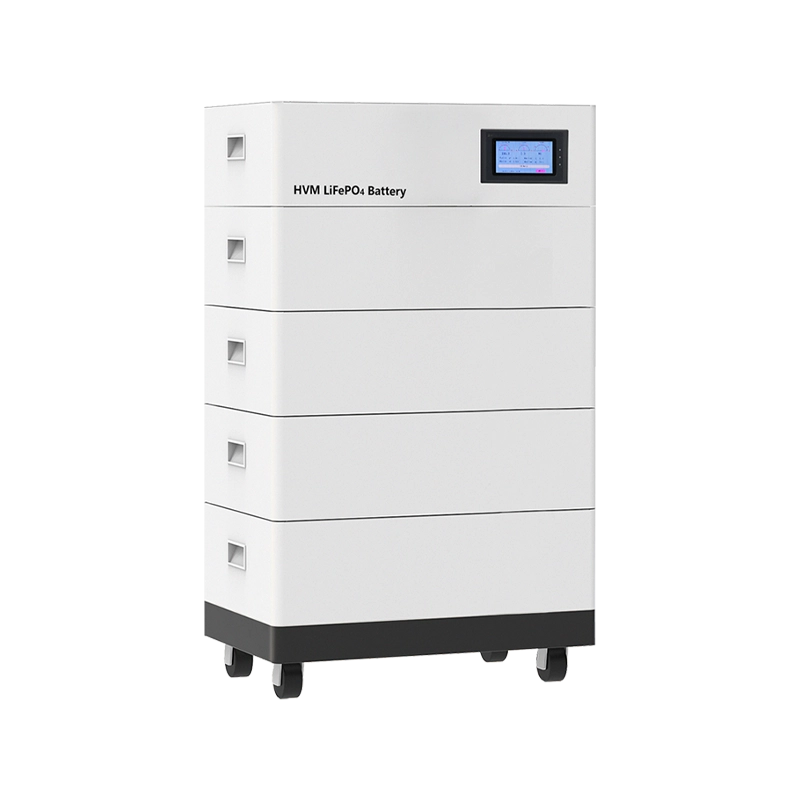

- HVM60S100BL battery with four modules and 19.2kWh energy

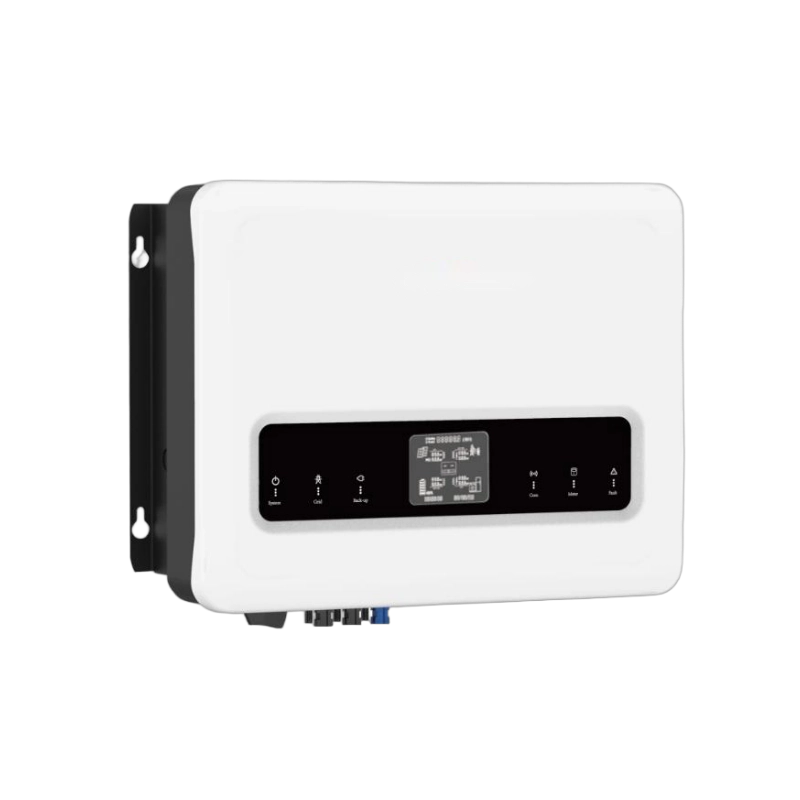

- EPH10KTL three-phase hybrid inverter with 10kW rated AC power
- 18 × 620W N-type TOPCon panels, approximately 11.16kW PV configuration
- Battery RS485/CAN communication and inverter WiFi/GPRS/LAN options
- Battery IP54 and inverter IP65; final site and grid requirements require confirmation
- Review available product documents before quotation and final system matching.
Final configuration, certifications, compatibility, delivery and warranty terms require confirmation against the selected model, destination market and project conditions.
Product Core Advantages
Two practical points for evaluating YR-SYS620-3P10-19.2 as an inverter solution.
Inverter and storage values are presented together
The source page lists the inverter, battery and PV values in one system configuration, helping buyers begin technical and commercial matching from a common reference.
Solar self-use, backup and project review
The system can be evaluated for selected residential, installer and distributor programs; local grid, load, phase and protection requirements must be confirmed before quotation.
Application scenarios
Where this inverter solution can be evaluated
Each application requires a review of the final load, PV, local electrical and documentation conditions.
Residential solar self-consumption
Evaluate PV input, household load profile and local electrical requirements for self-use planning.
Home backup power
Review essential loads, backup duration and transfer requirements before final configuration.

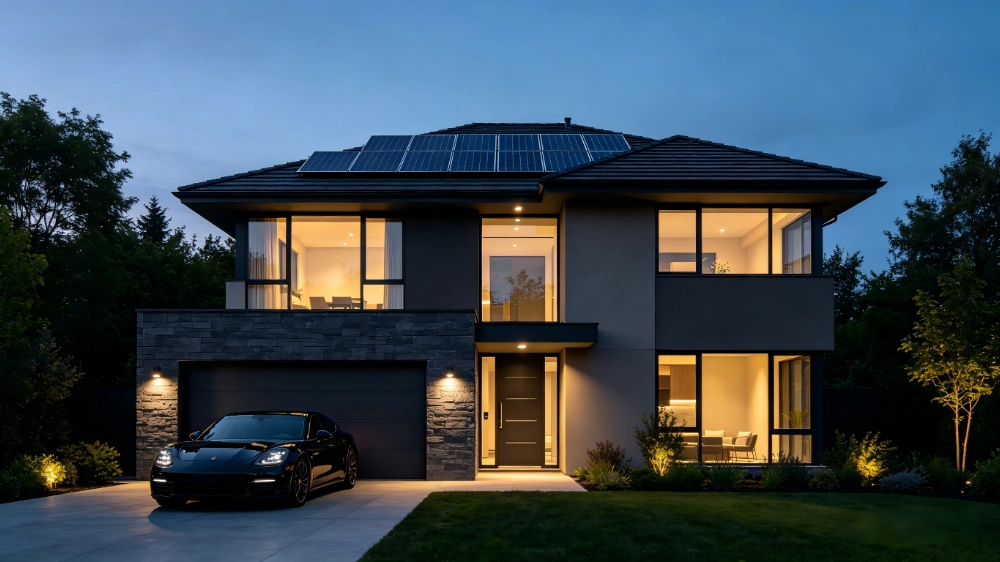

Installer-led solar projects
Use the documented inverter, battery and PV values as a starting point for system matching.
Distributor product programs
Suitable for distributors and OEM/ODM buyers evaluating a complete solar-storage package.
Technical specifications
YR-SYS620-3P10-19.2 specifications
| Product model | YR-SYS620-3P10-19.2 |
|---|---|
| System type | Three-phase high-voltage solar storage system |
| Battery model / chemistry | HVM60S100BL / LFP |
| Battery modules / energy | 4 / 19.2kWh |
| Battery nominal voltage | 192V |
| Battery dimensions / weight | 570 × 380 × 1000mm / 192.9kg |
| Battery cycle life | ≥6,000 cycles at 80% DOD, 25°C |
| Battery communication | RS485 / CAN |
| Hybrid inverter model / rated power | EPH10KTL / 10kW |
| AC voltage / frequency | 400V / 50Hz |
| Max DC input power / voltage | 15kW / 1000V |
| MPPT range / trackers | 200–850V / 2 |
| Battery voltage range | 130–700V |
| Inverter protection / weight | IP65 / 26kg |
| PV configuration | 18 × 620W N-type TOPCon panels |
| PV module efficiency | 22.8–23.3% stated on source page |
Standard models support prompt initial supply. Volume orders are produced against confirmed specifications, with a typical lead time of 15-45 days depending on model, quantity, customization, documentation requirements and destination. Final configuration, MOQ, delivery and warranty terms are confirmed in the quotation.
