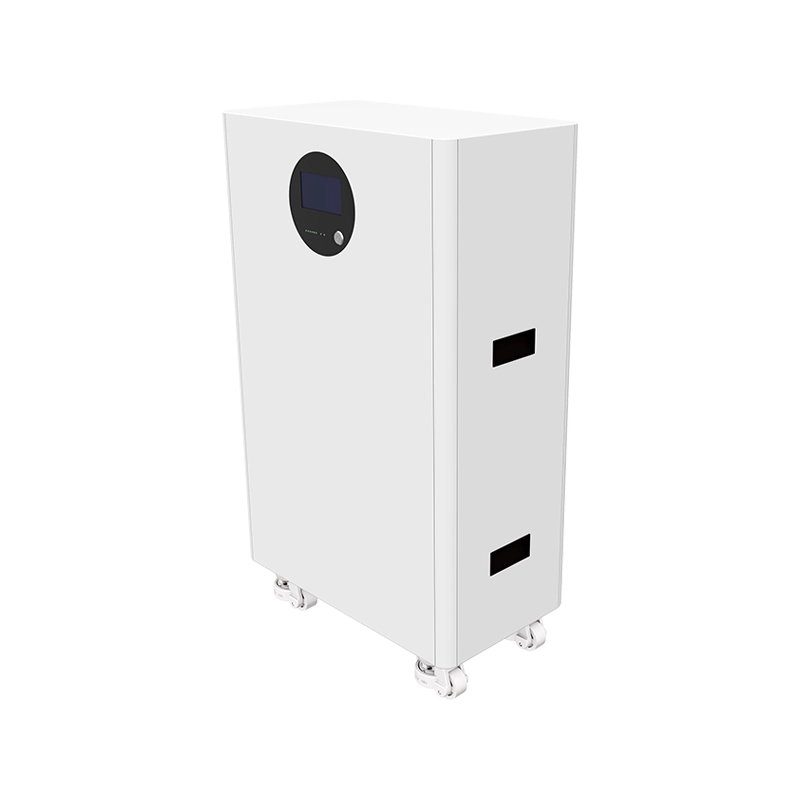

Movable floor-standing energy storage battery
WT-M16S280BL-F 14.336kWh Movable LiFePO4 Battery
The WT-M16S280BL-F movable battery provides 51.2V, 280Ah and 14.336kWh nominal energy in a floor-standing LiFePO4 enclosure for residential backup and solar storage projects.
Product model: WT-M16S280BL-F
Product overview
Movable 14kWh battery for residential and villa projects
WT-M16S280BL-F gives distributors and installers a higher-capacity battery in a movable, pure-white enclosure. It is designed for compatible residential solar, backup and off-grid projects where the inverter and installation conditions are confirmed. Explore the complete CVC Energy energy storage battery range for related capacity and installation options.
- 51.2V, 280Ah and 14.336kWh nominal energy
- Movable and floor-standing enclosure
- 200A maximum charge and discharge current
- >= 6000 stated cycles at 80% DOD and 25 C
- RS485, CAN and RS232 communication interfaces
- Download technical documents for distributor review and project quotation
Product Core Advantages
Two practical reasons WT-M16S280BL-F can support distributor, installer and project-buyer evaluation when the final system configuration is confirmed.

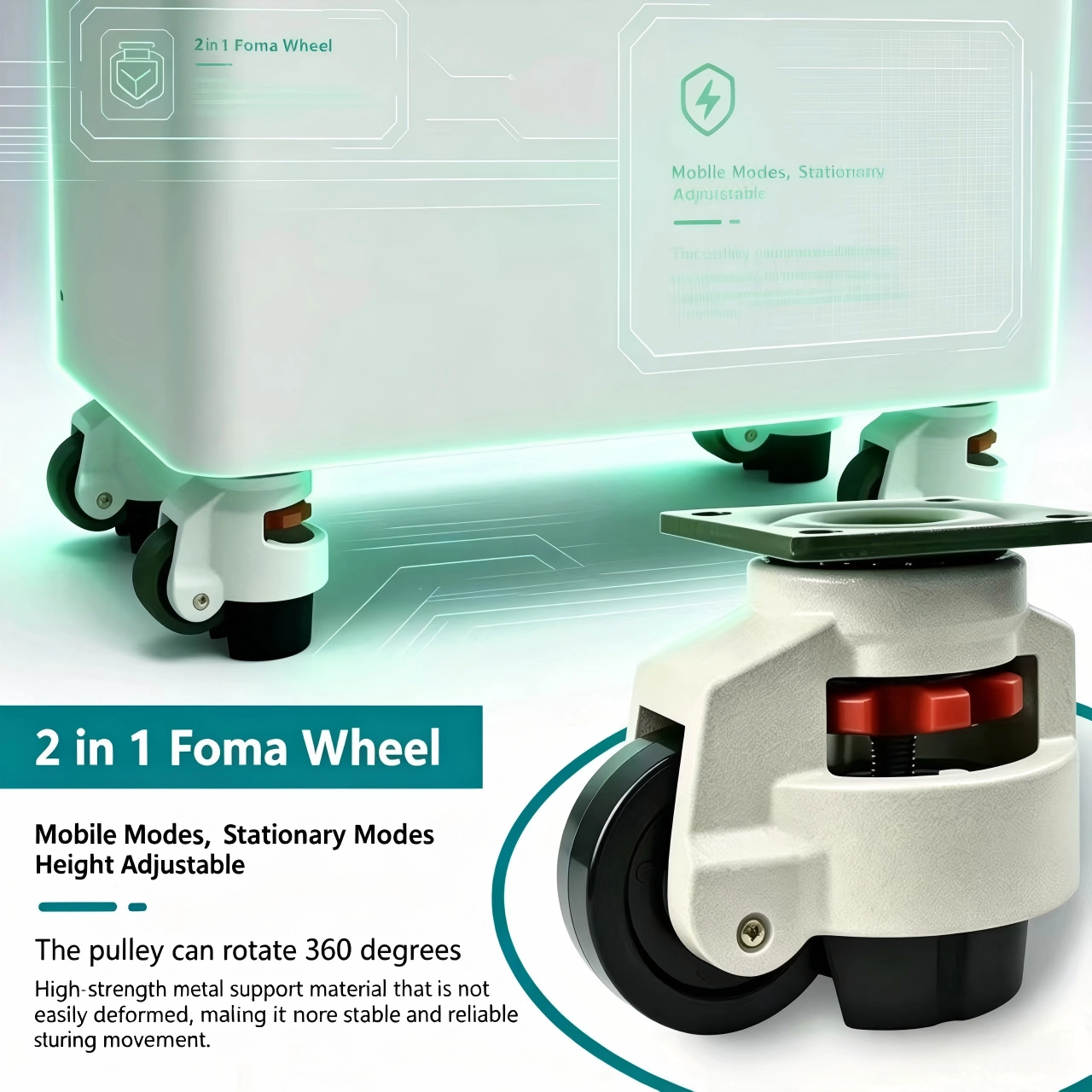

Pure-white floor-standing battery with caster mobility
The enclosure and caster format help installers position the battery for residential demonstrations and qualified projects while retaining a clean product presentation.
14.336kWh storage with 200A maximum current
The 51.2V, 280Ah configuration supports larger backup plans than a compact wall battery. Parallel expansion and inverter settings require final engineering review.
Application scenarios
Application and channel-fit scenarios
Use the correct inverter, BMS communication and installation conditions for each project. For regional demand planning, review CVC Energy’s Southeast Asia battery and inverter solutions.
Home backup
Support compatible household backup plans after load and inverter review.
Off-grid homes
Use in controlled off-grid designs with suitable charging and protection.
Villa storage
Provide higher nominal energy for selected larger residential projects.
Installer demos
A movable format for channel demonstrations and project discussions.
Technical specifications
Technical specifications
Public product data based on supplied factory material. Final configuration should be confirmed for the destination market.
| Product model | WT-M16S280BL-F |
|---|---|
| Battery type | LiFePO4 |
| Nominal voltage | 51.2V |
| Rated capacity | 280Ah |
| Total energy | 14.336kWh |
| Configuration | 16S |
| Installation | Movable / floor-standing |
| Maximum charge/discharge current | 200A |
| Cycle life | >= 6000 cycles at 80% DOD, 25 C |
| Communication | RS485 / CAN / RS232 |
| Display | Button display |
| Net weight | 132kg |
| Dimensions | 540 x 300 x 910mm |
| Charge temperature | 0 to 60 C |
| Discharge temperature | -10 to 65 C |
| Ingress protection | IP21 |
Standard models support prompt initial supply. Volume orders are produced against confirmed specifications, with a typical lead time of 15-45 days depending on model, quantity, customization, documentation requirements and destination. Final configuration, MOQ, delivery and warranty terms are confirmed in the quotation.
Planning a movable 14kWh battery project?
Share the target market, inverter model, expected quantity and installation conditions. CVC Energy will review WT-M16S280BL-F for the project.
