Dual-installation energy storage battery

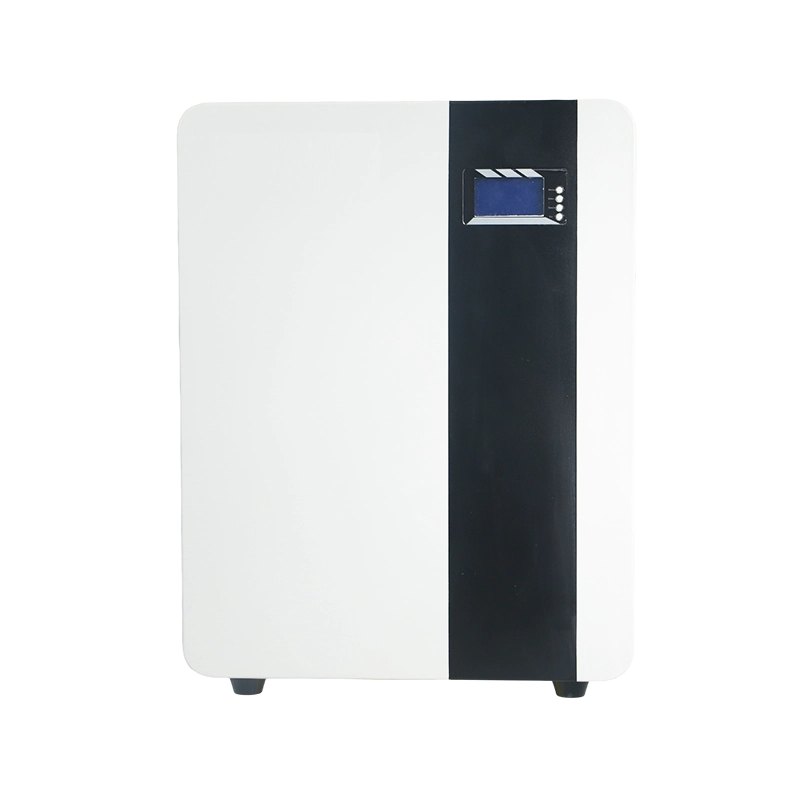

M16S100BL-V2 5.12kWh Wall-Mounted & Floor-Standing LiFePO4 Battery
The M16S100BL-V2 LiFePO4 battery provides 5.12kWh nominal energy in a 51.2V, 100Ah platform that supports wall-mounted or floor-standing residential installation.
Product model: M16S100BL-V2
Product overview
One 5kWh platform for wall-mounted or floor-standing installation
M16S100BL-V2 is designed for channel buyers and installers that need more site flexibility than a wall-only battery. The same 51.2V platform can be evaluated for wall-mounted or floor-standing residential solar and backup projects. Explore the complete CVC Energy energy storage battery range for related capacity and installation options.
- 51.2V, 100Ah and 5.12kWh nominal energy
- Wall-mounted and floor-standing installation options
- 100A maximum charge and discharge current

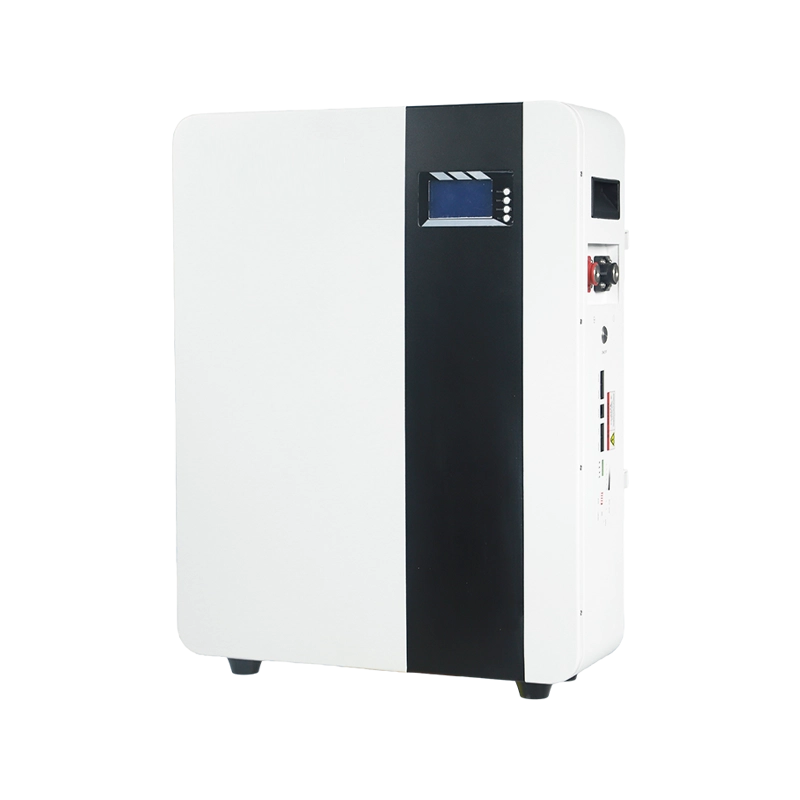

- Button display for local status checks
- RS485, CAN and RS232 communication interfaces
- Download technical documents for distributor review and project quotation
Product Core Advantages
Two practical reasons M16S100BL-V2 can support distributor, installer and project-buyer evaluation when the final system configuration is confirmed.

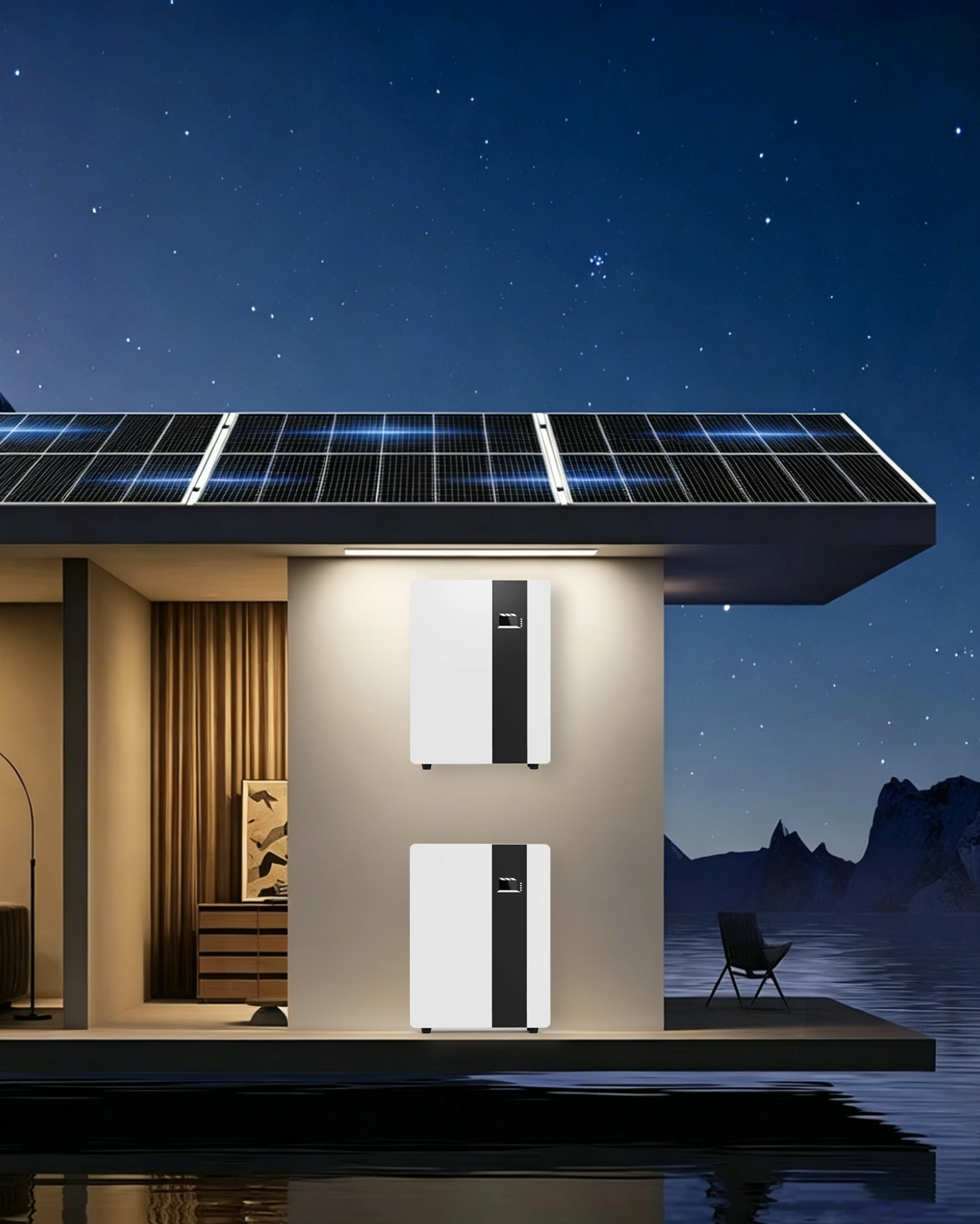

Flexible wall or floor placement for different residential sites
Installers can evaluate the same battery platform for wall mounting or floor-standing placement, helping channel partners cover more site conditions with one core model.

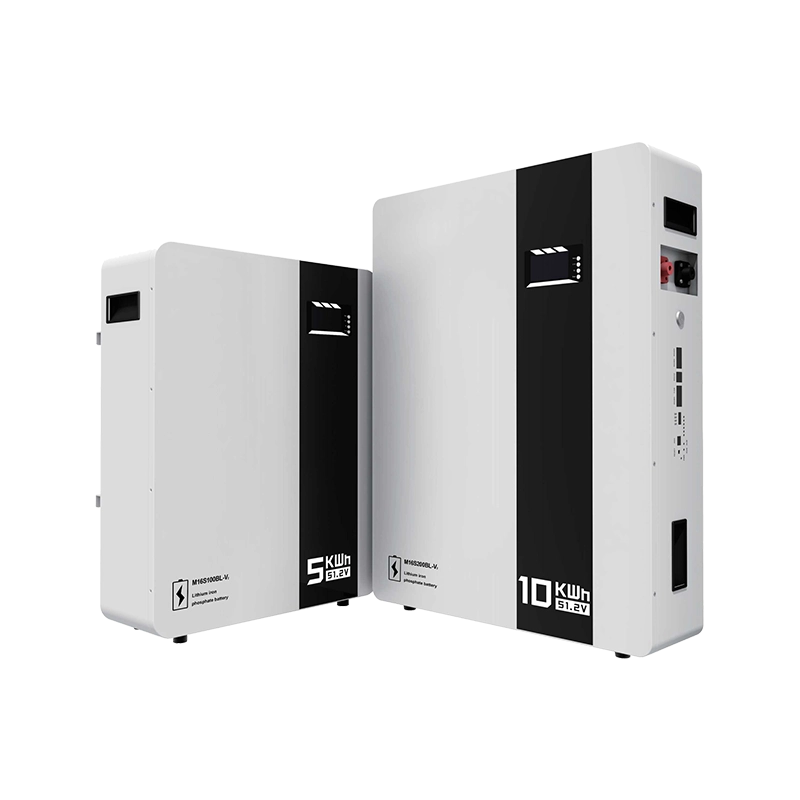

A 5kWh platform that supports a broader distributor battery range
The V2 family supports 5kWh and related higher-capacity configurations in supplier materials. Exact capacity, parallel use and inverter compatibility must be confirmed per order.
Application scenarios
Application and channel-fit scenarios
Use the correct inverter, BMS communication and installation conditions for each project. For regional demand planning, review CVC Energy’s Southeast Asia battery and inverter solutions.
Homes
A compact battery option for compatible household solar and backup systems.
Apartments
Wall placement can reduce the floor area used by the battery installation.
Retrofit projects
Floor-standing placement provides an alternative when wall mounting is unsuitable.
Backup systems
Use after load demand, inverter settings and communication protocol are reviewed.
Technical specifications
Technical specifications
Public product data based on supplied factory material. Final configuration should be confirmed for the destination market.
| Product model | M16S100BL-V2 |
|---|---|
| Battery type | LiFePO4 |
| Nominal voltage | 51.2V |
| Rated capacity | 100Ah |
| Total energy | 5.12kWh |
| Configuration | 16S |
| Installation | Wall-mounted / floor-standing |
| Maximum charge/discharge current | 100A |
| Cycle life | >= 4000 cycles at 80% DOD, 25 C |
| Communication | RS485 / CAN / RS232 |
| Display | Button display |
| Net weight | 44kg |
| Dimensions | 440 x 150 x 560mm |
| Charge temperature | 0 to 60 C |
| Discharge temperature | -10 to 65 C |
| Ingress protection | IP21 |
Standard models support prompt initial supply. Volume orders are produced against confirmed specifications, with a typical lead time of 15-45 days depending on model, quantity, customization, documentation requirements and destination. Final configuration, MOQ, delivery and warranty terms are confirmed in the quotation.
Need flexible placement for a 5kWh battery project?
Send the site layout, inverter model, target market and quantity. CVC Energy will review the suitable M16S100BL-V2 installation and configuration.
