Touch-display wall-mounted battery

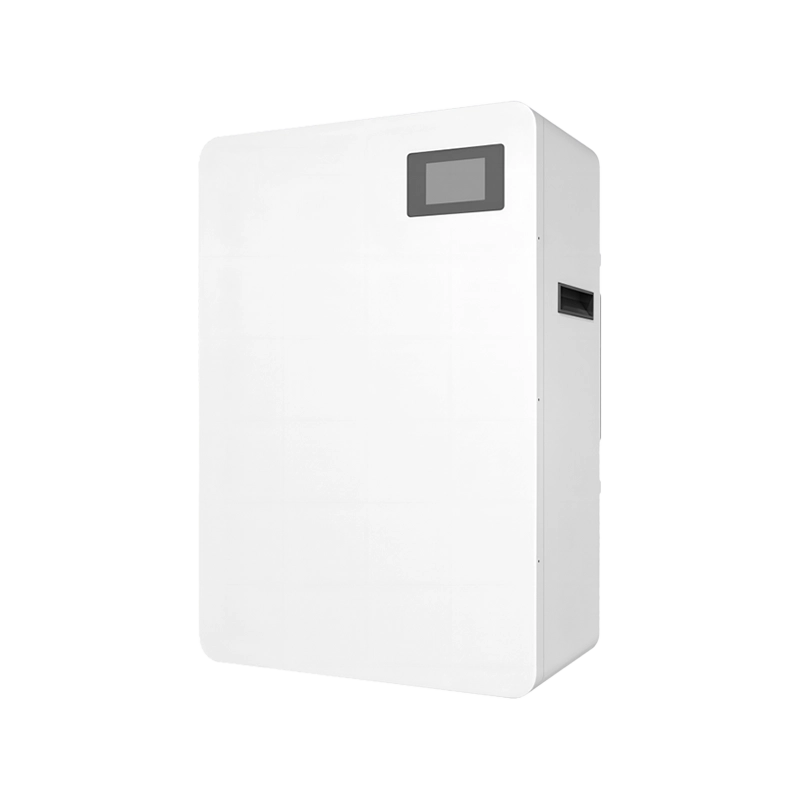

M16S100BL-V1 5.12kWh Wall-Mounted LiFePO4 Battery
The M16S100BL-V1 wall mounted battery delivers 51.2V, 100Ah and 5.12kWh nominal energy with a touch display for residential solar and backup projects.
Product model: M16S100BL-V1
Product overview
Touch-display 5kWh wall battery for residential storage
M16S100BL-V1 is a compact wall-mounted battery for channel buyers and installers that want a visible touch interface for local operating data. It is intended for compatible residential solar and backup systems. Explore the complete CVC Energy energy storage battery range for related capacity and installation options.
- 51.2V, 100Ah and 5.12kWh nominal energy
- Wall-mounted enclosure
- Touch display for real-time local data
- 100A maximum charge and discharge current
- RS485, CAN and RS232 communication interfaces
- Download technical documents for distributor review and project quotation
Product Core Advantages
Two practical reasons M16S100BL-V1 can support distributor, installer and project-buyer evaluation when the final system configuration is confirmed.
Touch-display wall battery for clearer local status

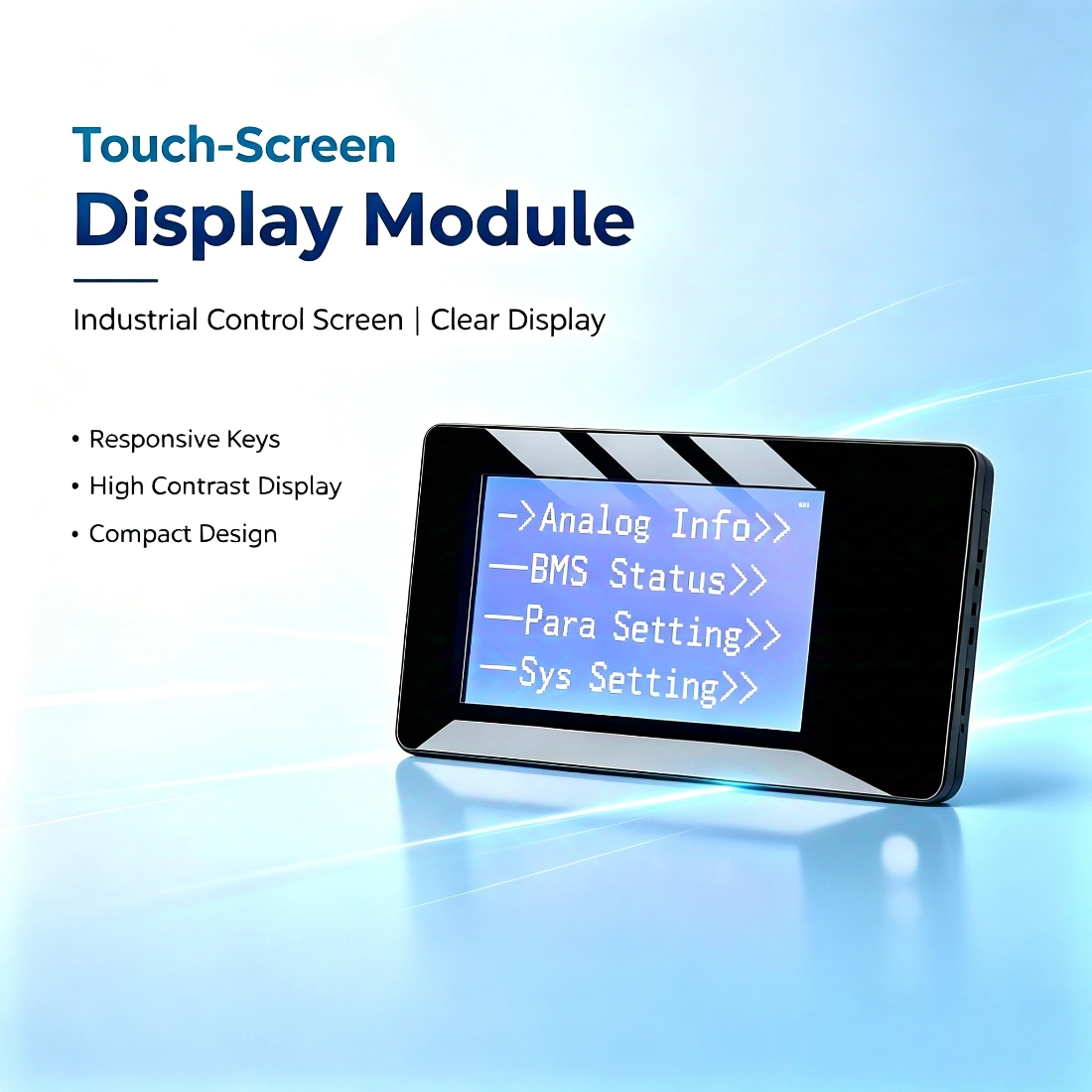

The integrated touch display gives installers and end users a direct view of battery operating information without turning the display into the main product feature.
100A battery option for common residential backup projects
The 51.2V, 100Ah configuration fits many 5kWh-class enquiries. Actual load support and inverter compatibility depend on the full system design.
Application scenarios
Application and channel-fit scenarios
Use the correct inverter, BMS communication and installation conditions for each project. For regional demand planning, review CVC Energy’s Southeast Asia battery and inverter solutions.
Home backup
Use in compatible household backup systems after load review.
Residential PV
Store rooftop solar energy with a matched low-voltage inverter.
Installer projects
A touch-display model for installers serving home-storage customers.
Small off-grid systems
Evaluate for controlled off-grid designs with suitable charging and protection.
Technical specifications
Technical specifications
Public product data based on supplied factory material. Final configuration should be confirmed for the destination market.
| Product model | M16S100BL-V1 |
|---|---|
| Battery type | LiFePO4 |
| Nominal voltage | 51.2V |
| Rated capacity | 100Ah |
| Total energy | 5.12kWh |
| Configuration | 16S |

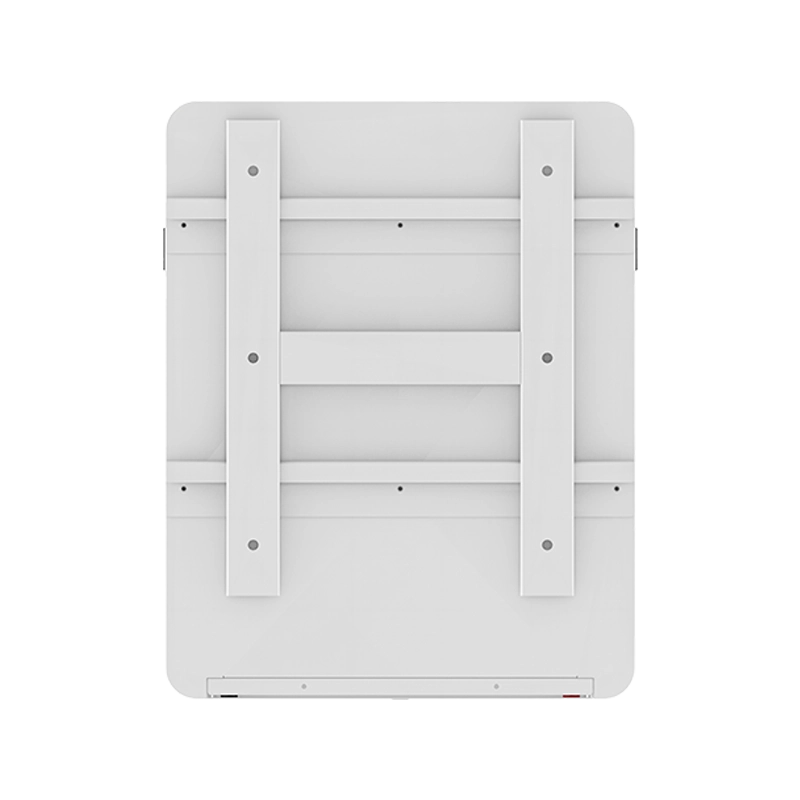

| Installation | Wall-mounted |
| Maximum charge/discharge current | 100A |
| Cycle life | >= 4000 cycles at 80% DOD, 25 C |
| Communication | RS485 / CAN / RS232 |
| Display | Touch display |
| Net weight | 44kg |
| Dimensions | 632 x 512 x 255mm |
| Charge temperature | 0 to 60 C |
| Discharge temperature | -10 to 65 C |
| Ingress protection | IP21 |
Standard models support prompt initial supply. Volume orders are produced against confirmed specifications, with a typical lead time of 15-45 days depending on model, quantity, customization, documentation requirements and destination. Final configuration, MOQ, delivery and warranty terms are confirmed in the quotation.
Need a touch-display 5kWh wall battery?
Share your inverter model, target market, installation conditions and quantity. CVC Energy will review M16S100BL-V1 for your project or product range.
