Wall-mounted energy storage battery

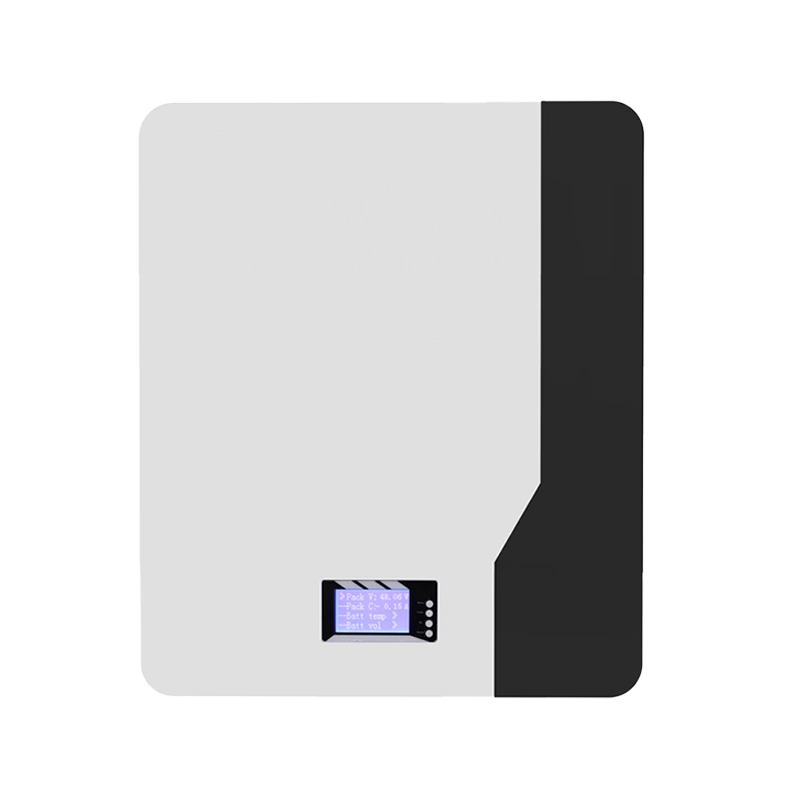

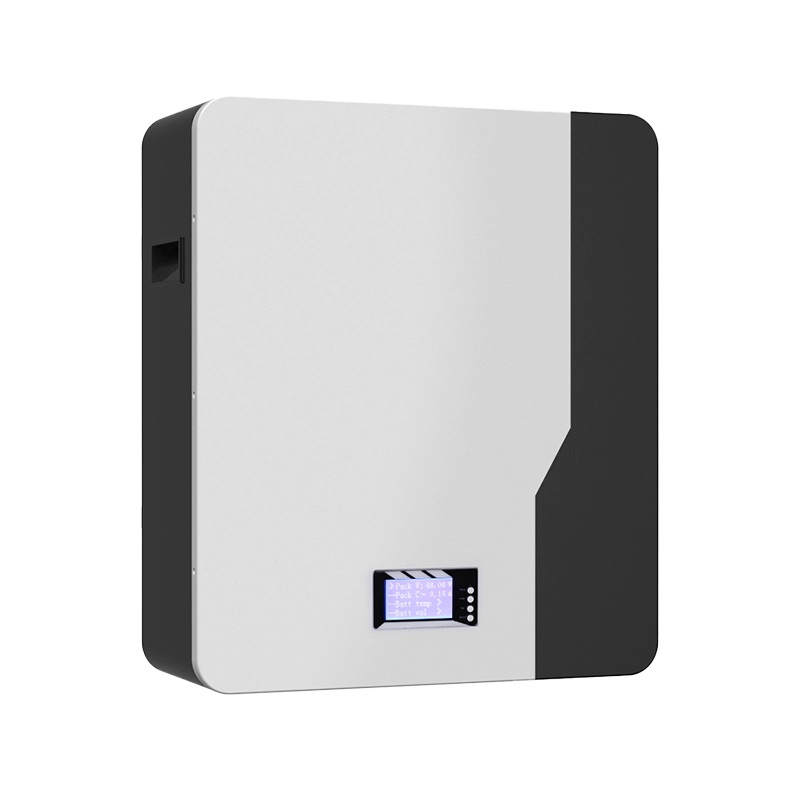

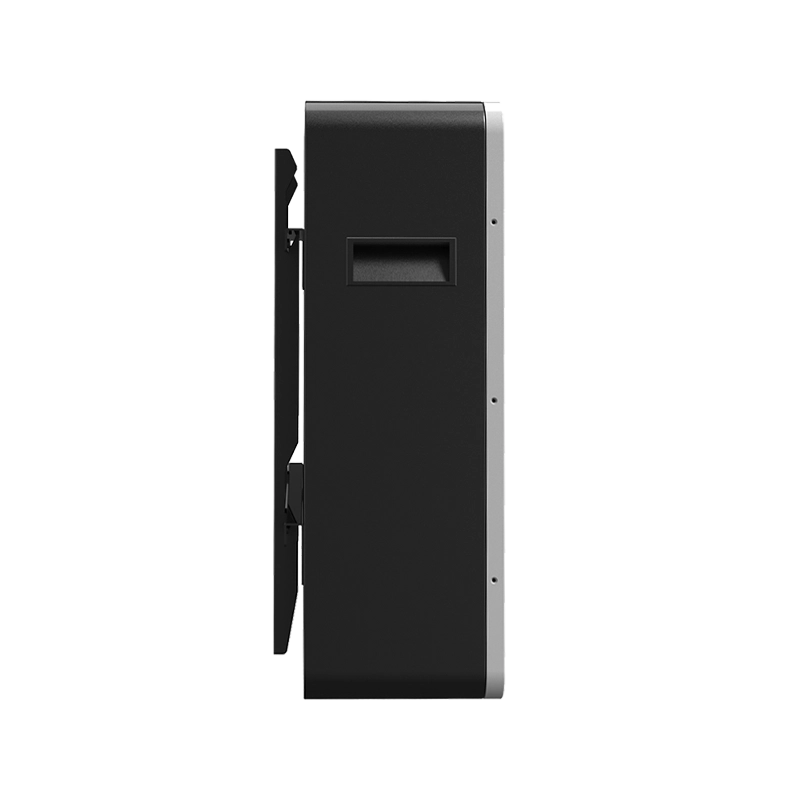

M16S100BL-V 5.12kWh Wall-Mounted LiFePO4 Battery
The M16S100BL-V wall mounted battery combines 51.2V, 100Ah and 5.12kWh nominal energy in a compact LiFePO4 enclosure for residential solar storage, backup projects and distributor supply.
Product model: M16S100BL-V
Product overview
Compact 5kWh wall battery for residential retrofit projects
M16S100BL-V gives distributors and installers a compact 5.12kWh option for wall-mounted residential storage. It is intended for compatible home solar and backup systems where battery voltage, current limits and BMS communication are checked before supply. Explore the complete CVC Energy energy storage battery range for related capacity and installation options.
- 51.2V rated voltage, 100Ah capacity and 5.12kWh nominal energy
- Wall-mounted format for homes, apartments and retrofit projects
- 100A maximum charge and discharge current
- Button display for local battery status
- RS485, CAN and RS232 interfaces for system matching review
- Download technical documents for distributor review and project quotation
Product Core Advantages
Two practical reasons M16S100BL-V can support distributor, installer and project-buyer evaluation when the final system configuration is confirmed.
5.12kWh wall-mounted battery for space-conscious installations
The compact enclosure helps installers place a residential battery without using floor space, while giving channel buyers a practical 5kWh class product for common home-storage enquiries.
Three communication interfaces for inverter and BMS review
RS485, CAN and RS232 support compatibility checks for selected inverter projects. The inverter model and communication protocol must be confirmed before quotation.
Application scenarios
Application and channel-fit scenarios
Use the correct inverter, BMS communication and installation conditions for each project. For regional demand planning, review CVC Energy’s Southeast Asia battery and inverter solutions.
Home backup
Support selected household backup loads after the load profile and inverter are confirmed.
Residential solar
Store solar energy in compatible low-voltage residential PV systems.
Installer stock
A compact 5kWh model for installers serving apartments and smaller homes.
Channel distribution
Add a wall-mounted 51.2V battery option to a distributor product range.
Technical specifications
Technical specifications
Public product data based on supplied factory material. Final configuration should be confirmed for the destination market.
| Product model | M16S100BL-V |
|---|---|
| Battery type | LiFePO4 |
| Nominal voltage | 51.2V |
| Rated capacity | 100Ah |
| Total energy | 5.12kWh |
| Configuration | 16S |
| Installation | Wall-mounted |
| Maximum charge/discharge current | 100A |
| Cycle life | >= 4000 cycles at 80% DOD, 25 C |
| Communication | RS485 / CAN / RS232 |
| Display | Button display |
| Net weight | 44kg |
| Dimensions | 440 x 186 x 560mm |
| Charge temperature | 0 to 60 C |
| Discharge temperature | -10 to 65 C |
| Ingress protection | IP21 |
Standard models support prompt initial supply. Volume orders are produced against confirmed specifications, with a typical lead time of 15-45 days depending on model, quantity, customization, documentation requirements and destination. Final configuration, MOQ, delivery and warranty terms are confirmed in the quotation.
Reviewing a 5kWh wall battery for your market?
Share your inverter model, target market, expected quantity and installation conditions. CVC Energy will review whether M16S100BL-V fits the project.
