Scalable low-voltage energy storage battery

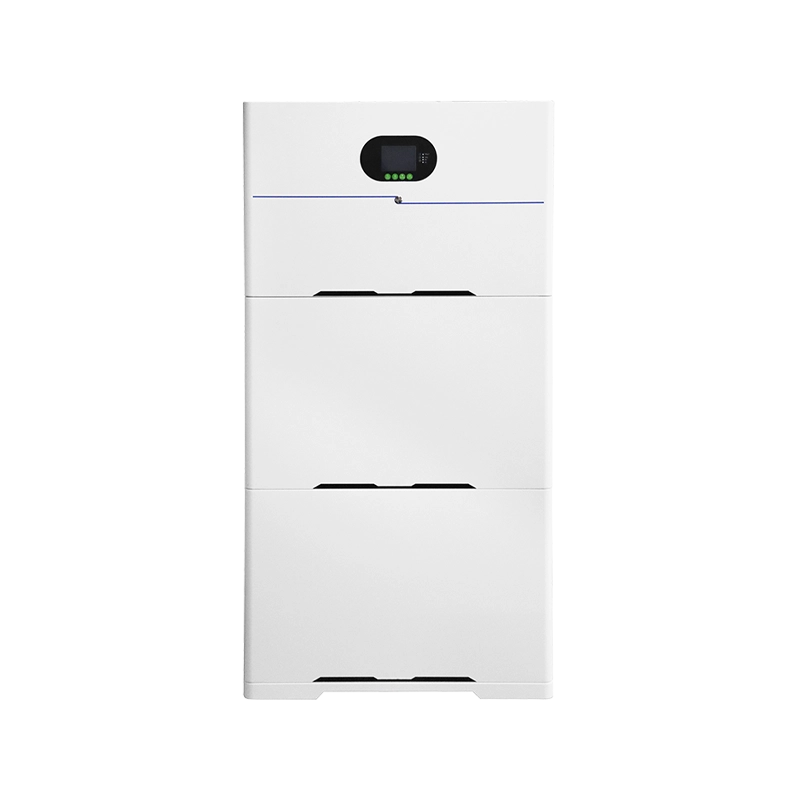

M15S280BL-V 13kWh Scalable LiFePO4 Battery
The M15S280BL-V LiFePO4 battery provides 48V, 280Ah and 13.44kWh nominal energy for larger residential solar storage, backup and self-consumption projects.
Product model: M15S280BL-V
Product overview
High-capacity 48V battery for larger residential demand
M15S280BL-V is a 13.44kWh battery platform for distributors, installers and project buyers serving larger home loads. Supplier material also presents matched hybrid-inverter configurations, but inverter supply and compatibility are separate items that require confirmation before quotation. Explore the complete CVC Energy energy storage battery range for related capacity and installation options.
- 48V rated voltage and 280Ah rated capacity
- 13.44kWh nominal battery energy
- LiFePO4 prismatic cell platform
- >= 6000 cycles at 80% DOD under stated test conditions
- Up to four battery units shown in supplier material, subject to final system review
- Download technical documents for distributor review and project quotation
Product Core Advantages
Two practical reasons M15S280BL-V can support distributor, installer and project-buyer evaluation when the final system configuration is confirmed.
13.44kWh low-voltage storage for higher household demand
The 48V, 280Ah configuration gives project buyers more battery capacity than a typical 5kWh wall unit while retaining a low-voltage residential storage architecture.
Expandable battery platform for staged capacity planning
Supplier material shows multi-unit expansion. The final battery count, protection settings and matched inverter must be confirmed by CVC Energy before supply.
Application scenarios
Application and channel-fit scenarios
Use the correct inverter, BMS communication and installation conditions for each project. For regional demand planning, review CVC Energy’s Southeast Asia battery and inverter solutions.

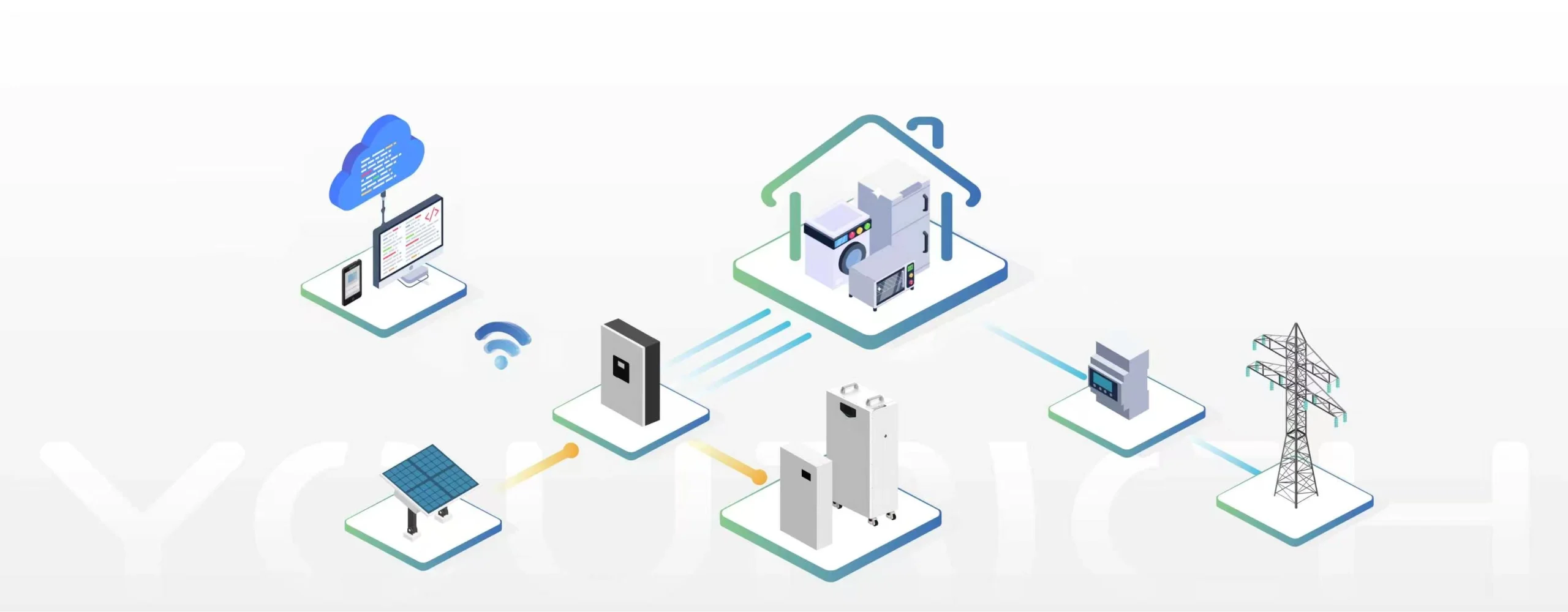

Solar self-consumption
Store compatible rooftop PV production for later household use.
Home backup
Support larger household backup plans after load and inverter review.
Larger-load homes
A higher-capacity option for homes that have outgrown a 5kWh battery class.
Project matching
Give distributors a scalable battery option for qualified residential projects.
Technical specifications
Technical specifications
Public product data based on supplied factory material. Final configuration should be confirmed for the destination market.
| Product model | M15S280BL-V |
|---|---|
| Battery type | LiFePO4 prismatic cell |
| Nominal voltage | 48V |
| Rated capacity | 280Ah |
| Total energy | 13.44kWh |
| Cycle life | >= 6000 cycles at 80% DOD, 0.5C, 25 C |
| Maximum parallel capacity | 4 units / 53.76kWh, subject to confirmation |
| Battery dimensions | 750 x 470 x 250mm |
| Battery weight | Approx. 105kg |
| Ingress protection | IP21 |
| Matched inverter option | Supplier material shows a 10kW hybrid inverter; final scope requires confirmation |
Standard models support prompt initial supply. Volume orders are produced against confirmed specifications, with a typical lead time of 15-45 days depending on model, quantity, customization, documentation requirements and destination. Final configuration, MOQ, delivery and warranty terms are confirmed in the quotation.
Planning a larger 48V residential battery project?
Share the load profile, inverter requirement, target capacity and quantity. CVC Energy will review the M15S280BL-V battery configuration and matching conditions.
